Reliable Cushioning System for Hydraulic Servo Applications
We specialize in the design, engineering, testing, and supply of high-performance Nitrogen Cylinder Quads, used as a pressurized gas chamber for piston accumulators. These systems are critical in providing cushioning and consistent pressure for hydraulic servo motors across industrial and hydro applications.
Scope of Supply
We provide customized nitrogen bottle banks as per customer requirements, ensuring compatibility and efficiency in demanding environments.
System Overview & Features :-
- Functions as a pressurized nitrogen chamber to maintain oil pressure in piston-type accumulators
- Each cascade (quad) consists of multiple 50-liter capacity nitrogen cylinders, pre-charged between 100 to 150 kg/cm²
- Integrated with:
- Isolating Valves for individual or group shutdown.
- Pressure Gauge for real-time pressure monitoring.
- Safety Valve for overpressure protection.
Construction & Safety:-

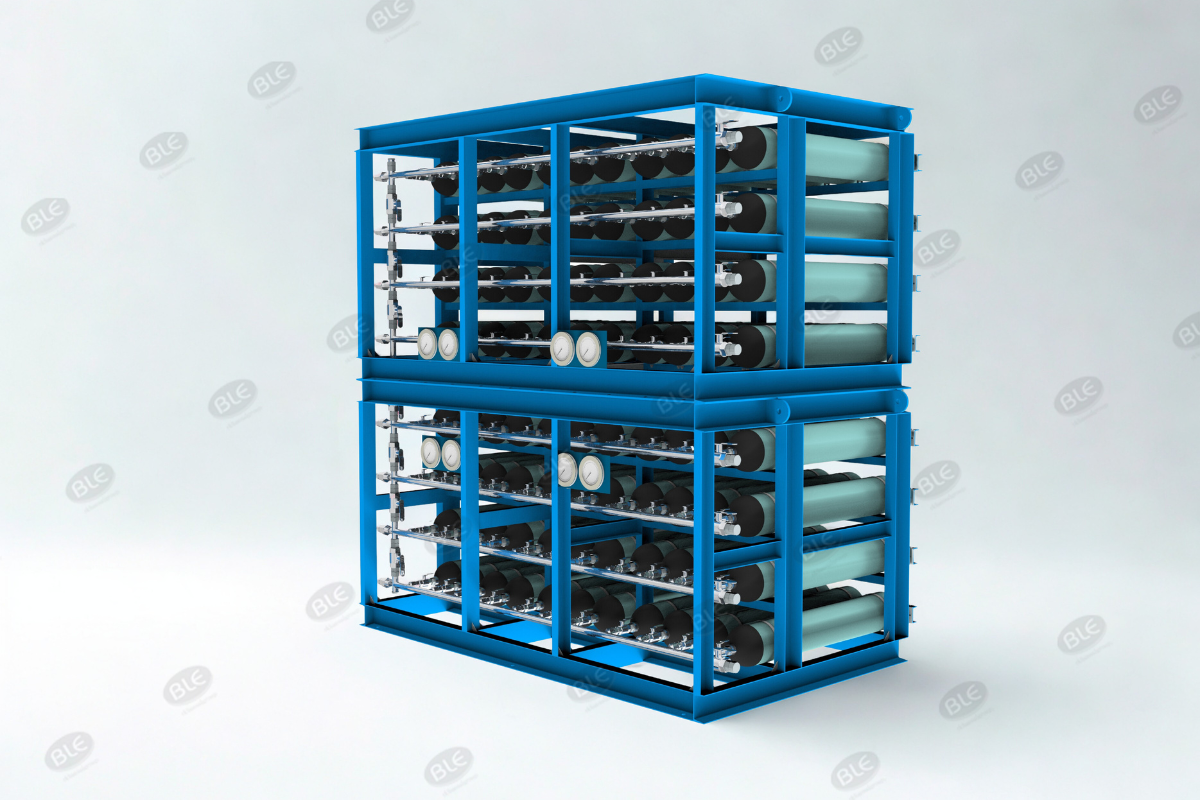

- All cylinders mounted horizontally within a sturdy welded steel frame.
- Frame constructed to Gas Cylinder Rules, 1981, with all cylinders properly painted and labeled.
- Free-standing structure with:
- Top-mounted lifting lugs for crane handling.
- Bottom forks for forklift lifting.
- The quad and top frame are reinforced to avoid any structural stress or deformation during lifting operations
- Designed to safely bear the full load of cylinders when completely filled with gas.
- Free-standing structure with:
Why Choose Our Quads?
- Fully engineered to meet safety and operational standards.
- Rigorously tested for performance and reliability.
- Designed for easy handling and on-site integration.
- Built to endure heavy-duty use in industrial and hydro power settings.
