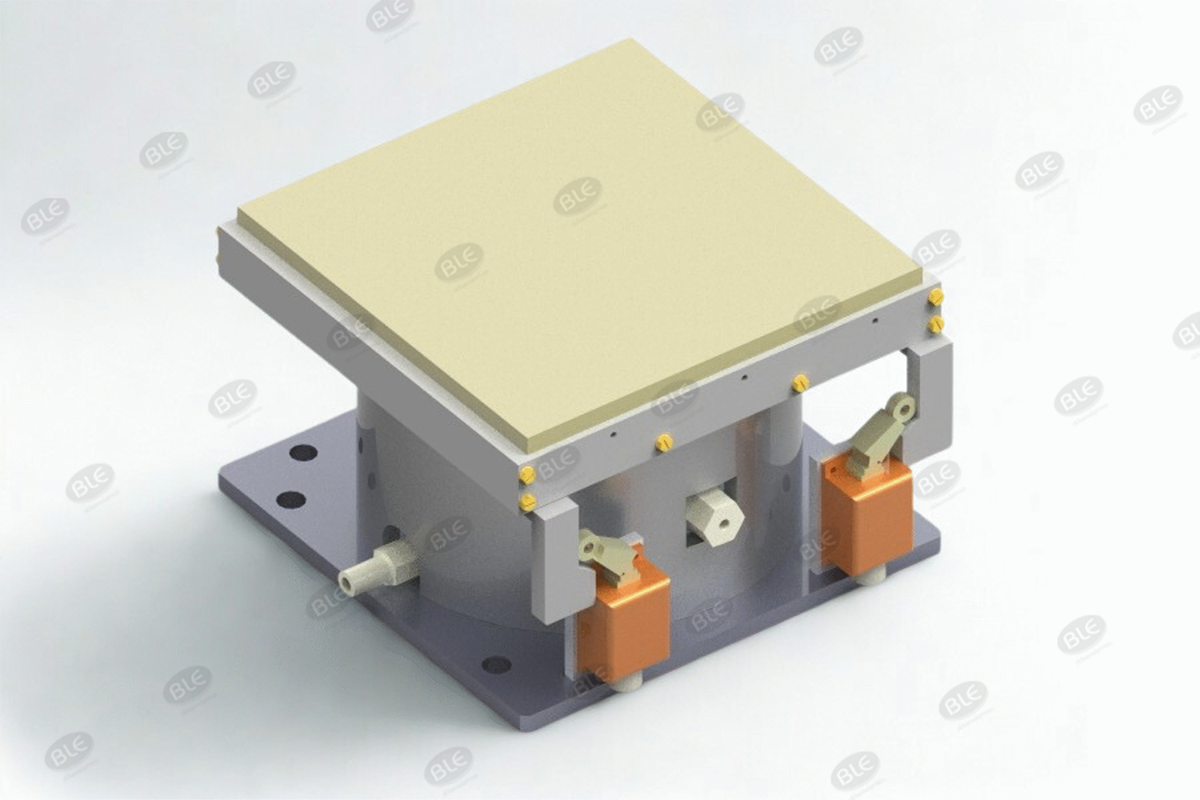

The Double Acting Brake & Jack Assembly is designed to meet demanding requirements for hydro generator rotor braking and lifting operations. This system combines robust engineering with precision control to ensure safe, reliable, and efficient operation under varying conditions. Our expertise in engineering allows us to deliver a complete turnkey solution — including design calculations, detailed drawings, testing, certification, and comprehensive quality documentation.
Main Characteristics
- Air Braking & Hydraulic Lifting with Pneumatic Retraction: Braking is achieved through a pneumatic system, while lifting is done using hydraulic pressure. Retraction is performed by air, enabling smooth and controlled operation.
- Double Acting Operation: Equipped with a configuration that enables forceful actuation in both directions — ensuring reliable jacking and retraction without relying on gravity or springs.
- Optimized for High Performance: Engineered for consistent braking force and lifting stroke, suitable for heavy-duty generator applications.
- Integrated Sensors: Provisions for sensors to monitor brake shoe wear, piston position, and operational status for enhanced safety and predictive maintenance.
- Customizable Control Interface: Fully compatible with local or remote operation via the Brake & Jack Control Panel, offering automatic and manual control options
