Precision Control for Rotor Braking & Jacking Operations:

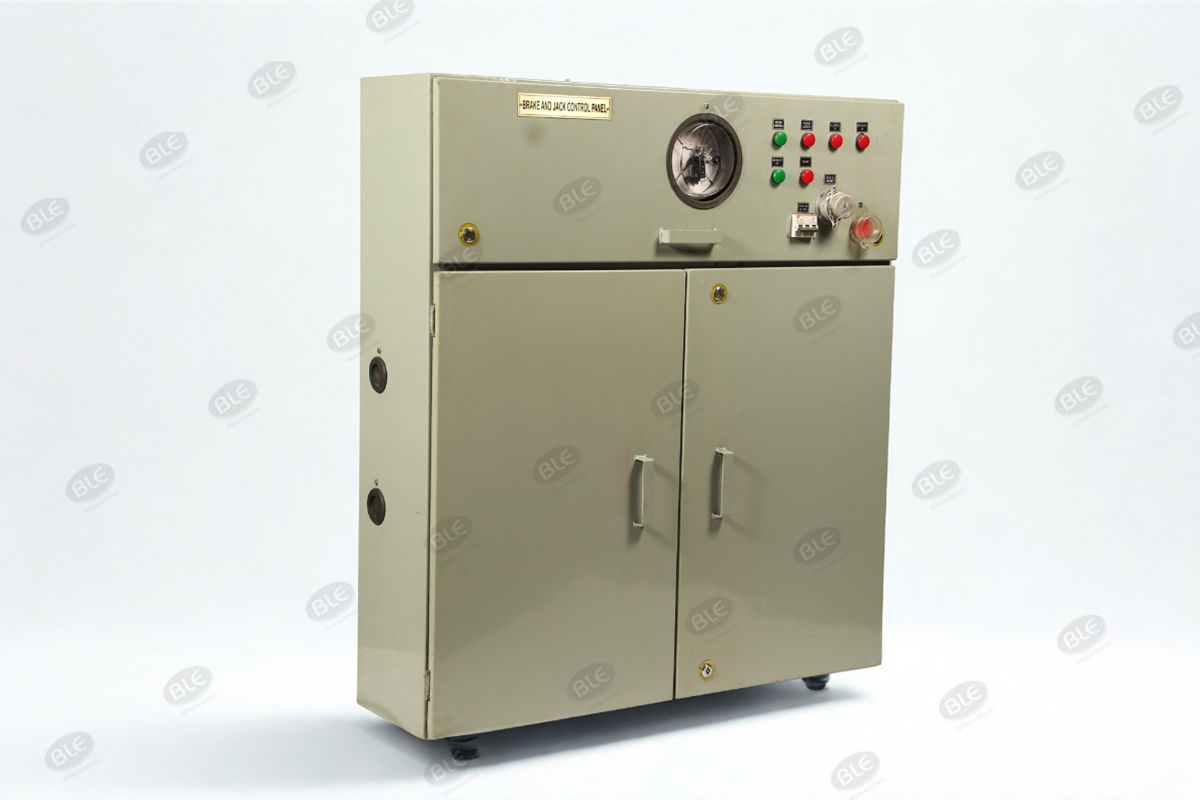

Our Brake Jack Control Panel is a dedicated unit engineered to manage the braking and jacking functions of hydro generator rotors with precision and reliability. The panel integrates pneumatic, hydraulic, and electrical systems to ensure safe and efficient operation under varying plant conditions.
System Overview:
The control panel is designed with a comprehensive dual-circuit layout — one for air and one for oil — along with a robust electrical interface.
Air Circuit Includes:
- Air Filter, Pressure Reducer & Lubricator Unit (FRL) for clean and regulated air supply.
- Solenoid Operated Air Control Valves for remote/automatic operation.
- Manually Operated Air Valves for local/manual override.
- Shut-Off Valves for safe isolation and maintenance.
Oil Circuit Includes:
- Non-Return Valve to prevent backflow and ensure unidirectional oil movement.
- Sludge & Moisture Trap for removing contaminants and enhancing system longevity.
- Oil Tundish for safe oil filling and level monitoring.
- Shut-Off Valves for controlled oil flow and system servicing.
Electrical Circuit Features:
- Miniature Circuit Breaker (MCB) for circuit protection.
- 3-Pole Contactor Switch for motor or actuator control
- Indicating Lamps to display system status and alerts
This integrated control system provides safe, responsive, and reliable control over the braking and lifting functions, making it an essential component of any modern hydro generator setup.
