Our Hydro-Electrical Control Panels are engineered for precise and reliable control of hydraulic systems in hydroelectric power plants. These panels integrate hydraulic actuation, electrical control, and safety features into a compact, modular, and factory-tested solution. Whether for Main Inlet Valves (MIV) or Pilot Valves (PV), our HCPs ensure seamless turbine operation and shutdown under all conditions.
Product Overview

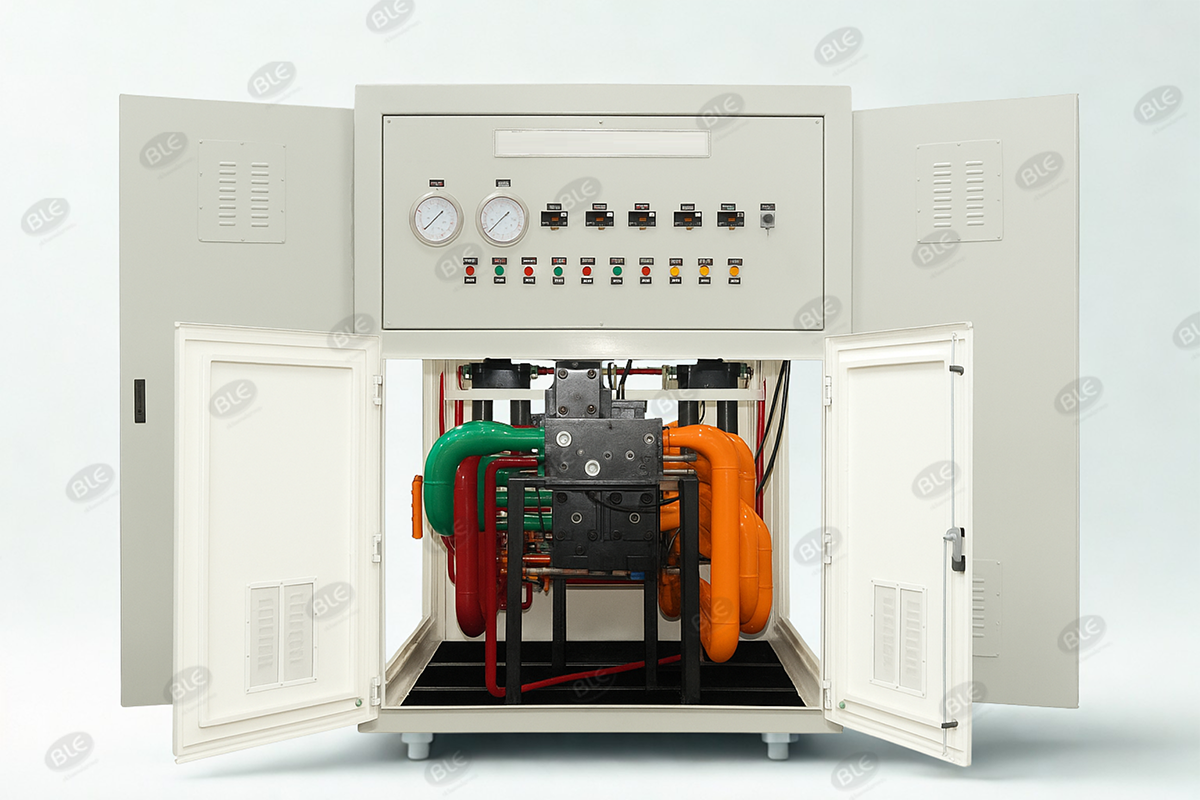

The Hydro-Electrical Control Panel is a pre-engineered system that includes :
- Hydraulic control valves and actuators
- Electrical control circuits with monitoring and feedback
- Pressure gauges, filters, and safety interlocks
- Compatible interfaces for remote and local operation
The panel is designed to regulate and monitor valve movements and hydraulic pressures critical to turbine operations, ensuring system integrity, operational safety, and long-term durability.
Key Features :-
- Integrated Electro-Hydraulic System: Combines hydraulic actuation with electrical control for reliable turbine and valve management.
- Designed for MIV & PV Applications: Suitable for main and pilot valve control in hydroelectric projects.
- Pre-Wired & Factory Tested: Each unit is fully assembled, pressure tested, and functionally verified before dispatch.
- Compact, Panel-Mounted Design: Enclosed in a heavy-duty steel cabinet with cable entry, earthing, and terminal access.
- Built to Specifications: Supplied as per customer-approved specification and drawing numbers (non-disclosed here for generalization).
System Components
- Hydraulic valves (solenoid operated or manual override)
- Pressure gauges with isolating valves
- Suction and return filters with indicators
- Pressure relief and check valves
- Electrical indicators, terminal blocks, and wiring
- Coupling with motorized or manual actuation
- MS base frame
Testing & Quality Compliance
Each panel is tested as per industry and customer requirements:
- Hydraulic pressure testing
- Electrical continuity and function checks
- Dimensional inspection and QA documentation
- Compliance with BHEL or OEM-approved drawings (if applicable)
Scope of Supply
- Complete Hydro-Electrical Control Panel assembly
- Associated filters, valves, gauges, and instrumentation
- Spare set (if applicable)
- Fasteners, couplings, gaskets, and cable glands
- Test Certificates and O&M Manual
- Nameplate with tag number
Applications
- Hydro Power Stations
- Main Inlet Valve (MIV) Control
- Pilot Valve (PV) Actuation
- Turbine Shutdown and Start-Up Management
- Hydraulic Gate and Actuator Systems
Customization & Options
- Remote I/O or SCADA integration
- Flameproof or weatherproof enclosures
- Additional safety interlocks or alarm signals
- VFD-compatible or PLC-interfaced models
- Optional spare kits for preventive maintenance
